The spring manufacturing machinery is in-house, conceived by our chairman,(who himself is an engineer,) and built with the support of our trusted partner companies. The in-house design of the manufacturing machinery enables us to mass produce springs with highest and consistent quality.
Multi-forming machine
(manufactured in-house)
New INF forming machine
(manufactured in-house)
We have also introduced the FMU-2 CNC machine manufactured by WAFIOS of Germany in our company. This computer controlled machine allows us to meet more precise and complex specification needs.
FMU forming machine
(manufactured by WAFIOS)
※If you are using a smartphone, you can scroll horizontally.
| Equipment | Qty. | Specifications etc. |
|---|---|---|
| Forming machine (manufactured in-house) | 24 | Wire diameter Φ0.7~Φ3.0mm |
| NC forming machine (manufactured in-house) | 3 | Wire diameter Φ0.7~Φ3.0mm |
| CNC bending machine (manufactured by WAFIOS) | 1 | Wire diameter Φ0.8～Φ2.5mm |
| Spring Forming Center Model RX-40 (manufactured by ITAYA) | 1 | Wire diameter Φ1.5～Φ4.0mm |
| Press machine (5 tons) | 1 | |
| Heat treatment furnace (batch type) | 2 | |
| General purpose milling machine | 2 | |
| General-purpose lathe | 1 | |
| Contour machine | 1 | |
| Drilling machine | 1 | |
| Carbide polishing machine | 1 | |
| Fixed grinder | 1 | |
| Projector | 3 | |
| Image dimension measuring device | 1 | |
| Load measuring device | 1 | |
| Air Compressor | 1 |

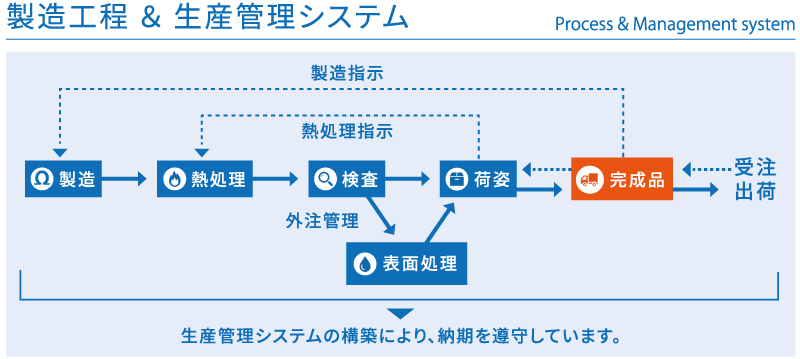

Forming (bending)
(Multi-forming machine, New INF forming machine, FMU forming machine)
It uses hard steel wire for manufacturing springs and shape them into springs and hose clips.
Heat treatment
By annealing the molded product (at 300℃ to 435℃), it becomes a spring product (elastic body).
Inspection
Inspects springs for correct dimensions and angles.
Surface treatment
Surface treatment is performed to prevent rusting and for identification purposes.
Packaging
The packaging is tailored to the customer's needs and products packed in returnable boxes.
Shipping
The springs are packed into the pallets, then loaded onto trucks, and transported to automobile manufacturing factories and other locations for assembly.
